D Tap to LEMO connector FHK.1B 4pin Power Adaptor Cable for Camera Canon C300 Mark2 II C100/Canon C200/C500 Power cable

D Tap to LEMO connector FHK.1B 4pin Power Adaptor Cable for Camera Canon C300 Mark2 II C100/Canon C200/C500 Power cable
  • Продавецwww.arizonacardinalsvsdetroitlions.us
  • Список ценUS $31.92piece
  • Продажная ценаUS $31.92piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (595)

Oписание продукта

FEATURES:

  • Tone traces cable with complete AC interference rejection
  • Two Scan Modes: common switch & PoE switch and check open, short, cross, reverse, locate broken position via length display and check cable continuity with remote
  • Measure cable length accurately for network cable, coaxial, telephone and USB cables; Track trace with complete AC interference Rejection
  • Tracing/Measuring cable length/Check cable errors for RJ45/RJ11/BNC/USB cable
  • With CE approval, length calibration and storage and data loading function, auto-off time (adjustable) function, low voltage indication

                     Complete Set Includes:

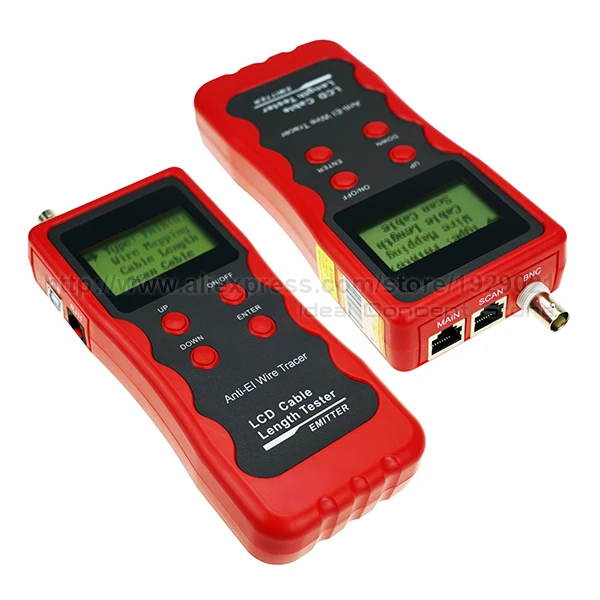

  • 1 x Emitter
  • 1 x Receiver
  • 8 x Remote adaptor
  • 1 x Earphone
  • 1 x RJ11 Telephone cable adaptor
  • 1 x RJ45 Network cable adaptor
  • 1 x RJ11-to-Alligator clip cable adaptor
  • 1 x Manual
  • 2 x 9V battery

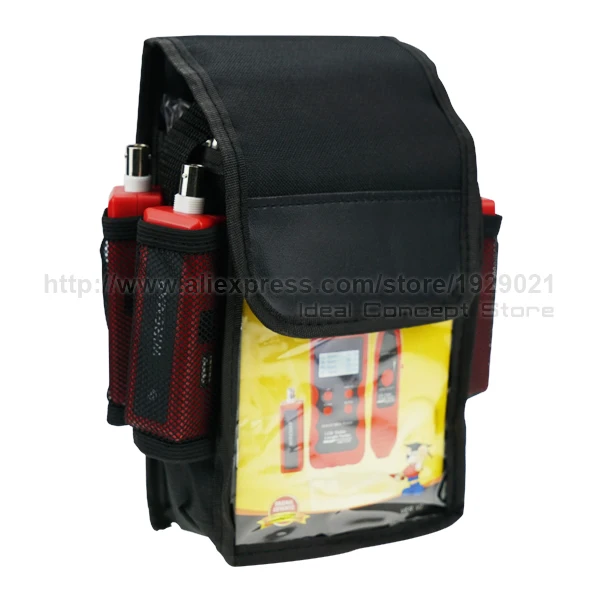

  • 1 x Carry pouch

SPECIFICATIONS:

  • Testing/Detecting cable types: STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, USB cable and common metal wires connected with alligator clip
  • Length measurement:
    • calibration precision: 2% (+/-0.5m, or +/-1.5 feet; cable >10m)
    • measurement precision: 3% (+/-0.5m, or +/-1.5 feet; AMP, CAT5E, 6E cable material)
    • Display Unit: meter, feet, yard
  • Transmitter:
    • LCD screen: 50 x27mm
    • Frequency: 1MHz
    • Maximum Distance:
      • Tracing cable: 3000m (for electrified wire)/ 2000m (for non-electrified wire)
      • Cable mapping: 2500m
      • Cable length testing: 1000m
    • Trace cable connected to switch: Anti-jamming
    • Tone mode: 2 Tones, adjustable
    • Compatible with connectors: RJ11, RJ45, BNC, USB
    • LED lights display: wiremap, tone, tracing
    • Cable map indication: LCD (Pin 1-Pin 8)
    • Shielded indication: LCD (Pin 9)
    • Voltage protection: AC 60V/ DC42V
    • Low battery display: LCD (6.5V)
    • Power supply: 1 x 9V battery
    • Dimension: 185 x 80 x 32mm
  • Receiver:
    • Tone Frequency: 600Hz/ 1.2KHz
    • The max working current: Less than 70mA
    • Earphone jack: 1
    • LED illumination: 2 LEDs
    • Power supply: 9V battery
    • Dimension: 218 x 46 x 29mm
  • Remote adaptor
    • Remote identifier: 8 pcs
    • Compatible connectors: RJ11, RJ45, BNC, USB
    • Dimension: 107 x 30 x 24mm



photo gallery



3-Ideal-Concept-Cable-Tester-NF-868W-set





2-Ideal-Concept-Cable-Tester-NF-868W-application





4-Ideal-Concept-Cable-Tester-NF-868W-parts







5-Ideal-Concept-Cable-Tester-NF-868W-dimension



8-Ideal-Concept-Cable-Tester-NF-868W-remote





6-Ideal-Concept-Cable-Tester-NF-868W-main





7-Ideal-Concept-Cable-Tester-NF-868W-receiver







9-Ideal-Concept-Cable-Tester-NF-868W-bag
