ThunderSpeed Barebone Mini PC J1900 Quad Core NUC 4 LAN Firewall Router Fanless Nano ITX Computer Windows Linux Pfsense OS

ThunderSpeed Barebone Mini PC J1900 Quad Core NUC 4 LAN Firewall Router Fanless Nano ITX Computer Windows Linux Pfsense OS
  • Продавецwww.arizonacardinalsvsdetroitlions.us
  • Список ценUS $151.00piece
  • Продажная ценаUS $151.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (795)

Oписание продукта

Desktop / Rack 1U Soft Router / Firewall / VOIP /Netwotk Security Server with

4gigabit ethernet J1900 processor (Bypass optional)

Only if you have over 30-50sets,we can do as your requires.Such as:your favorite color,your logo etc.

Our Aim:Devoted ourselves to server for you with 100% satisfy.

Note:The case is some different.Stock case color is Dark Gay or Sprinkle Black.
And there are only with the board indicating Letter in the standard cases.
Print your company letters Available.Please contact the sale about the cost.

The price is for the following configurations:
1.Desktop/Rackable chassis L205*W250*H45mm
2.Four Gigabit Ethernet Intel 82583V(2sets Bypass optional)
3.Intel Quad Core J1900 Processor
4.Switching powersupply 60W
5.4GB DDR3 1333Mhz RAM

(SSD Optional)

Product Description

Mechanical
Material
1.0mm Super SGCC
Colors
Black (other colors customzied)
Dimension
L205mm x W250mm x H45mm
Weight
2.85kgs
Mounting
Desktop or 19" 1U rack
Main System
CPU
Embedded Intel® J1900 quad-core 2.0GHz
Memory
1xDDR3L/1.35V  Ram Memory,Standard with 4GB
Graphic
1xIntel®HD Graphics
LAN Chipset
4xIntel  82583V Gigabit Ethernet,support Wake on LAN / PXE function
Watch Dog
0~256 Sec/min
Interfaces
Front I/O
Powersupply
110-240V DC Power Jack/1x12V DC Jack
LAN
4xGBe RJ45
Video Output
1xVGA
Rear I/O
Controlling
1x POWER Switch
Indicating
1xHDD Led,1*POWER Led
Port
1x CONSOLE
USB
2xUSB2.0
Storage
Msata
1xMSATA SSD(16GB,32GB,64GB,128GB optional)
Expansional
Slots
2 x MINIPCIE(1 x MSATA,1x WIFI interface)
Environmental
Operating Temp.
10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95%( relative humidity, non_condensing )
OS Supported
PFSense etc.Linux,Windows

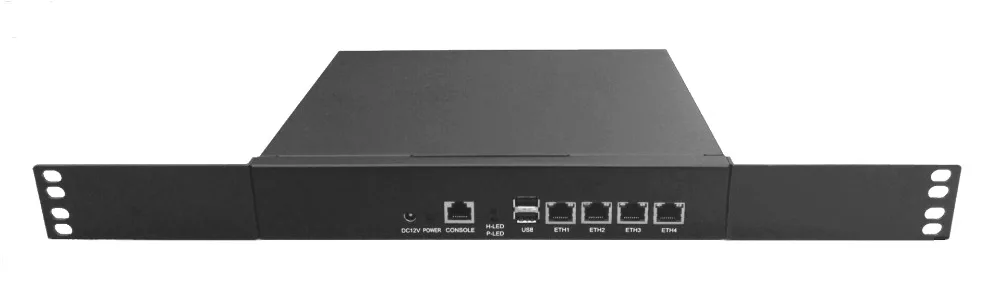

Detailed Images

Black J19F32

​Add logo--Please contact the sale.Like this:
