Intel Core i5 3317u Industrial PC 1007u Fanless Mini PC Windows 10 TV Box HDMI 4 RS232 Dual NIC 2 LAN 8 USB WiFi Rugged Computer

Intel Core i5 3317u Industrial PC 1007u Fanless Mini PC Windows 10 TV Box HDMI 4 RS232 Dual NIC 2 LAN 8 USB WiFi Rugged Computer
  • Продавец
  • Список ценUS $191.51piece
  • Продажная ценаUS $191.51piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (221)

Oписание продукта

mini pc1
1112131415161718 20
Good News!!!
The two links are for I3 6100U,I5 6200U and I7 6500U,ship from Russia Warehouse!

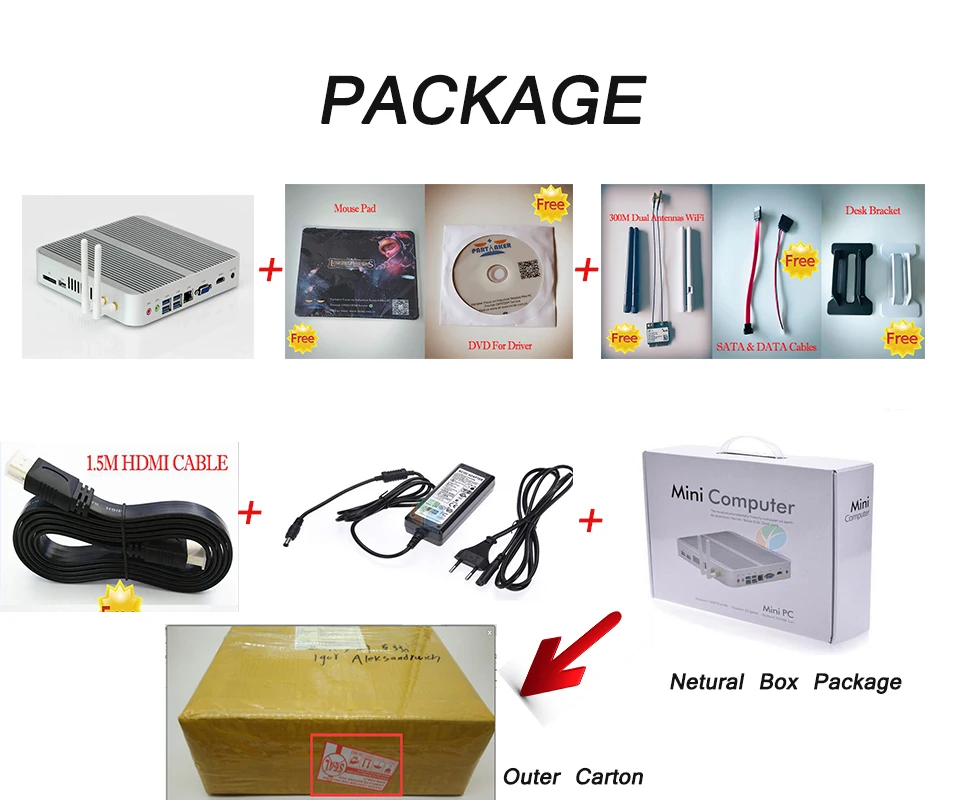

What\'s in the Box?


1. 1*Mini PC


2. 1* Power Adapter


3. 1* Desk Bracket(Different Model with Different size Bracket)


4. 1* SATA & Data Cables (For 2.5 Inch HDD Installation)


5. 1* 300M Dual Antennas WiFi(Free Gift)


6. 1* Mouse Pad(Free Gift)


7. 1* DVD for Drivers(Free Gift)


8. 1* 1.5M HDMI Cable(Free Gift)


9. 1* VESA Bracket(Optional $5 For B,P Series, not suit for Industrial PC)


10. 2.4G Wireless Touchpad Mini Keyboard(Optional Accessories $19 Only)


11. Normal DVD & USB Bluray DVD(Optional Accessories $28 or $48)


12.I7 6500U and I7 7500U will send more DP Cable to customer as a gift

Upgrade service

How to upgrade?
2. For example, vesa mount buy 4pcs
3. Upgrade value, 1pc=$1


i5 6200u

Editor Notes
Some models can add Bluetooth for free,if you need,please contact with us in advance.
Processor has 3 options suitable for the same motherboard:

1. Skylake 14nm CPU Intel Core i3 6100U 2 cores 4 threads 2.3GHz 3MB cache TDP 15W HD Graphics 520.(Silver Case)

2. Skylack 14nm CPU Intel Core i5 6200U 2 cores 4 threads 2.3GHz 3MB cache TDP 15W HD Graphics 520.(silver case)

3. Skylake 14nm CPU Intel Core i7 6500U or i7 6600U 2 cores 4 threads 2.5GHz TDP 15W Intel HD Graphics 520.(Black case)
Barebone system no ram no storage, please use DDR3L-1333 or 1600 low voltage 1.35V Non-ECC SO-DIMM Ram. Do not support DDR3 1.5V Ram.
1)- Beautiful: Industrial aesthetic design and Reasonable interface layout;
2)- Noiseless: Fanless system, low consumption, 0.00dB noise;
3)- Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pc 2.5\'\' SSD or HDD and 1pcs MSSD(5CMx3CM) together(welcome to contact our Pre-Sales if you need it) up to 512GB SSD or 1TB HDD large volume;
4)-Stable: Newest Intel Core i7 6500U(i5 6200U, i3 6100U)+Skylake structure+ Intel Graphics 520+Fanless professional passive cooling by alloy case, be able to work 24hours per day;
5)-Slim: Only 29mm body thickness, can stand on desk by free bracket we supply;
6)-Smooth: High-end Intel Graphics HD 520, fight again dedicated Graphics! Support all online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, 2*HDMI dual monitor display;
7)-Strong: Work with any brand monitors; 1*RJ45 Gigabit Lan Nic+1*VGA+1*HDMI+4*USB3.0+1*USB2.0 Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;
8)-Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.
9)-Certification: CE, FCC & RoHS.
Buy with confidence! 3 Years long warranty for fanless system!
Processor 1. Skylake 14nm CPU Intel Core i3 6100U 2 cores 4 threads 2.3GHz 3MB cache TDP 15W HD Graphics 520.
2. Skylake 14nm CPU Intel Core i5 6200U 2 cores 4 threads 2.3GHz up to 2.8GHz 3MB cache TDP 15W HD Graphics 520.
Operating System Windows 10/ Windows 8/ Linux
Storage SSD: 8GB/16GB/32GB/64GB/128GB/256GB/520GB
HDD: 80GB/160GB/320GB/500GB/750GB/1TB
Memory 2GB/4GB/8GB/16GB DDR3L 1.35V Voltage
Memory Type LPDDR3-1866, DDR3L-1600
Motherboard Intel Skylake-ULT
Processor details
Processor Number 2 core/ 4 threads
Core code Skylake
Technique 14nm
L1 data cache 2 * 32 KB, 8-Way, 64 byte lines
L2 code cache 2 * 32 KB, 8-Way, 64 byte lines
L3 cache 3MB, 12-Way, 64 byte lines
Characteristic MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0,  SSE4.2, HTT…
BIOS AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
Function Hyper-Threading, Virtualization technology, 64 bit computing
Graphic Cards   Intel HD Graphics 520
Audio Cards ALC662 sound chip, 6-channel
Intel Panther Point HDA
Network card RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet 10/100/1000 BaseT LAN
WIFI With dual antenna, 802.11.b/g/n(150M or optional 300M)
I/0 Port
Display port 1* VGA + 1 * HDMI
USB port 4* USB 3.0, 1* USB2.0, 1*SD card reader
SATA port 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s
MINI PCIE 1 * MSATA SSD, 1 * WiFi module
Ethernet port RJ45 10/100/1000 Mbps Adaptive
Power input port 1 inner diameter 2.5mm,external diameter 5.5mm
Audio port Standard 3.5 Audio input and output
Power and Working Environment
Input DC100-240V AC/50-60Hz
Output DC 12V/3A
Consumption 15W
Noise Fanless System
Temperature 0-70 Centigrade
Humidity 10%-90%
Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.
Accessories as Ram, SSD, HDD, we use famous brand: Ram,SSD,HDD etc. What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5\'\' SSD/HDD.
B11 mini pc 1B11 mini pc 2B11 mini pc 3B11 mini pc 4B11 mini pc 5
I7 6500U With Black Case(1 HDMI,LAN,DP)
