50,000 RPM Non Carbon Brushless NEW Design Dental Micromotor Polishing Unit with lab handpiece dental micro motor Powerful

50,000 RPM Non Carbon Brushless NEW Design Dental Micromotor Polishing Unit with lab handpiece dental micro motor Powerful
  • Продавецwww.arizonacardinalsvsdetroitlions.us
  • Список ценUS $299.86piece
  • Продажная ценаUS $299.86piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (702)

Oписание продукта





NOTES: Dear customer, as this link is use to sell AS-7000 before. that is why former customer showing different pictures. Now this link is selling QZ 60,  you will get ecactly same as the link showing right now.
If you have any question . please feel free to contact our sales.




Dental Micromotor Brushless  with Handpiece 50,000 rpm speed control by foot pedal

HIgh quality stable proformance one year quality warranty!

​Quite!!!

 Notification for customer:

For free shipping micromotor, Usually we will choose to ship parcel to you by DHL.   But considering customs clearance situation of some countries , we might change to ship parcel by other way without notification.  If you prefer designated transpotation. please leave us a message when you place the order.





qz60_0001_IMG_20160505_145228

You buy , and you will enjoy DHL fast shipping !!



     For customers fromEurope, Middle East, North America, Asia, Australia !



50000 RPM Non-Carbon Brushless  for dental lab laboratory jewelry carving  and industry  Micromotor Polishing Unit handpiece



NEW function: Speed controlled



by the foot pedal !

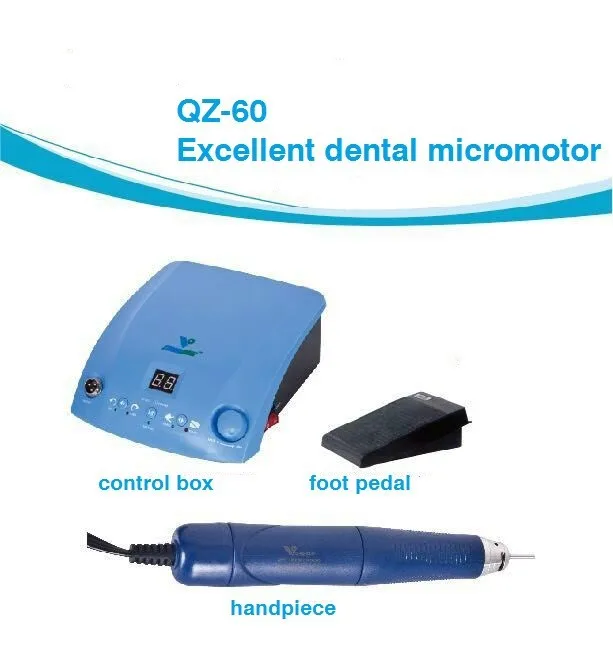

Model:QZ-60

Input:220V /110V

Output: 4A

Power:150w

Size: 20*20*8

Net Weight 2.25kg

Brushless  micromotor  high quality and stable porformance

With hand speed control and foot pedal speed control  , much more convenivent

One year quality warranty from the manufacturer!

Precautions:

1, the machine has intelligent protection function, no connection handpiece, motor damage,controller failure, high temperature, will start the automatic protection system. Then the display window will flash. When protection occurs first turn off the power switch, carefully check the condition of the various parts, troubleshooting before use.
2, follow your power supply AC110V model or AC220V, it may cause the controller to burn
3, if the machine does not work, check the power cord, handpiece, whether the foot switchplugged in, whether the fuse burned power outlet, if it is over-temperature protection, and other equipment to lower the temperature before use
4, the device when not in use, turn off the power switch
5, try to protect the handpiece, the handpiece is very sophisticated equipment
6. Do not talk to control for other devices, otherwise it will cause the controller is not working properly or is damaged.

2568176670_101597522IMG_0282

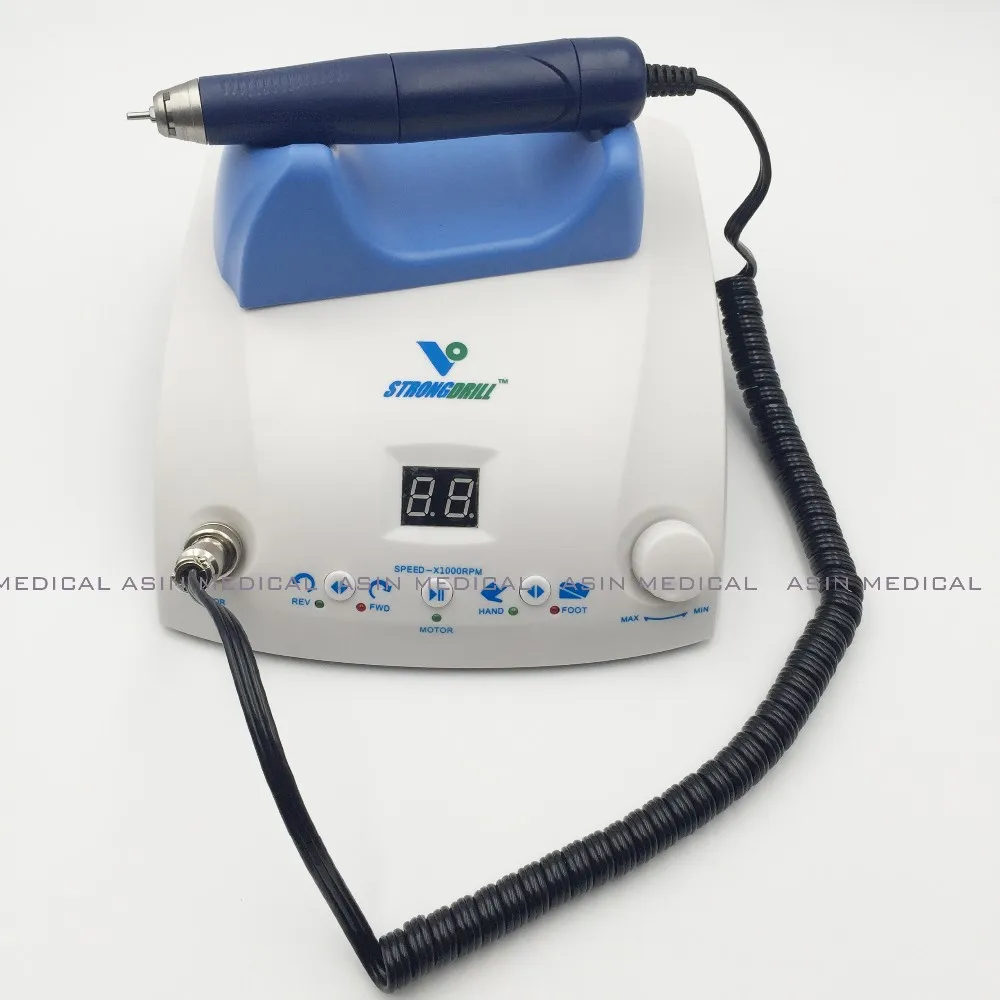

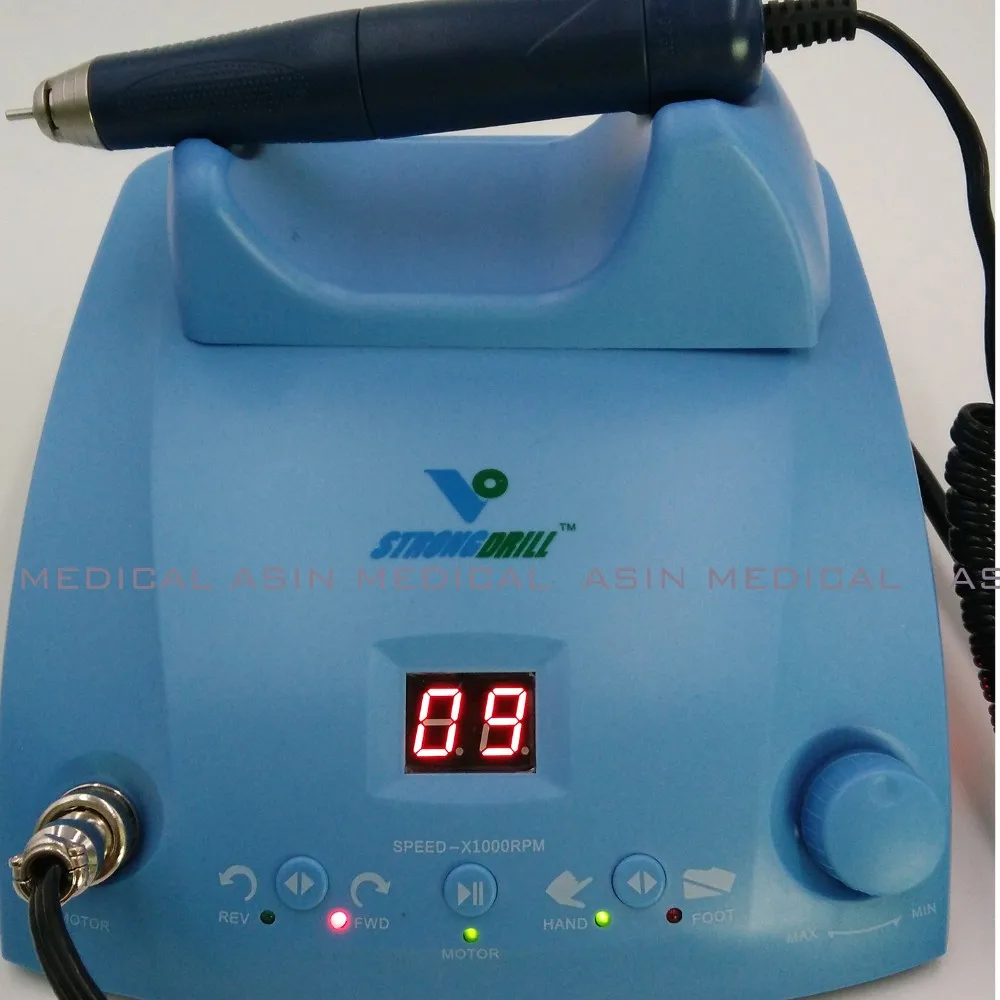

Instruction manual:

1- power socket: Connect to power line

2 Power fuse: fuse in the controller with automatic recovery function, when the motor current is too large or the use of force is too large, built-in recovery fuse is disconnected, so grinding machine handpiece to stop working, you need to turn off the main power switch for one minute after the restart


3 voltage switch: AC220V or AC110V, note voltage 110V AC220V can not be converted to use, otherwise it will damage the control panel, pay attention to the voltage 110V 220V can not be transferred, otherwise it will damage the control panel

4 speed foot switch Interface: The foot switch can choose any speed from 0 rpm to the speed control knob set

5 operation indicator: When running light is off, to be checked after voltage outlet fuse is disconnected, such as fuses off, you need to replace 2A fuse, can continue running.

6 main power switch

7 Knob Speed indicator: When the indicator light on the knob function is enabled speed.11

8 start and stop lights    start and stop lights to indicate the handpiece is in working condition, when the light is off, the handpiece to stop working

9reverse indicator lights on behalf of reversal

10 Forward indicator lights representatives Forward

11 speed control knob  speed control knob use to regular the speed, in the absence of the foot pedal , the handpiece  speed will be in accordance with the rpm speed control knob settings, there is a foot switch , handpiece speed will be in according to foot pedal  operation.
12   handpiece connector

13 foot pedal indicator lights, on behalf of the pedal speed control function is enabled, you can adjust speed through foot pedal

14 start /pause button

15 speed mode  select button to choose knobs or foot pedal to control speed

16reversing button control handpiece Reversible



QZ60 (3)QZ60 (8)QZ60 (9)QZ60 (2)QZ60 (10)QZ60 (7)QZ60 (11)QZ60 (14)



1



Application:

application
