WM210V Brushless motor lathe household lathes Variable Speed Mini Metal Lathe Machine WM210V Small Bench lathe 220v 850W 1pc

WM210V Brushless motor lathe household lathes Variable Speed Mini Metal Lathe Machine WM210V Small Bench lathe 220v 850W 1pc
  • Продавецwww.arizonacardinalsvsdetroitlions.us
  • Список ценUS $893.62piece
  • Продажная ценаUS $893.62piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (248)

Oписание продукта

sm798-1sm798-3
Package included:
  • 1 x Metal Lathe
  • 1 x Tool Set
  • 1 x Wide voltage 100V-240V AC Power adapter (We could offer US plug, AU plug, EU plug. Please let me know which type of plug you need after you purchase the machine)
  • 1 x Instruction

Product application:
  • Can build model railways, do repair work on machine or in the household.
  • Can turn axes, crankshaft and historical models.
  • Can make small cylinder and pecision tiny handcraft.


Main Components:
Headstock, Middle block, Connector, Thimble tailstock, large slider, Small slider, Hand wheel, Support. These components are made of metal, the quality of the product is improved, more durable and more accurate.

Product Instruction

  • Certificate: CE, UL, GS (transformer)
  • Input voltage: AC100V ~ 240V 50 / 60HZ
  • Output voltage: DC12V 2A
  • Rated motor power: 12W
  • Headstock speed: 3000 rpm
  • Motor speed: high-speed motor 18000r / min ± 15%; Low speed motor 10000r / min ± 15%
  • Spindle speed: High-speed motor 3000r / min ± 15%; Low speed motor 1600r / min ± 15%
  • Spindle beating: <0.1mm
  • Large slider stroke: 45mm
  • Small slider stroke 35mm
  • Center height 25mm

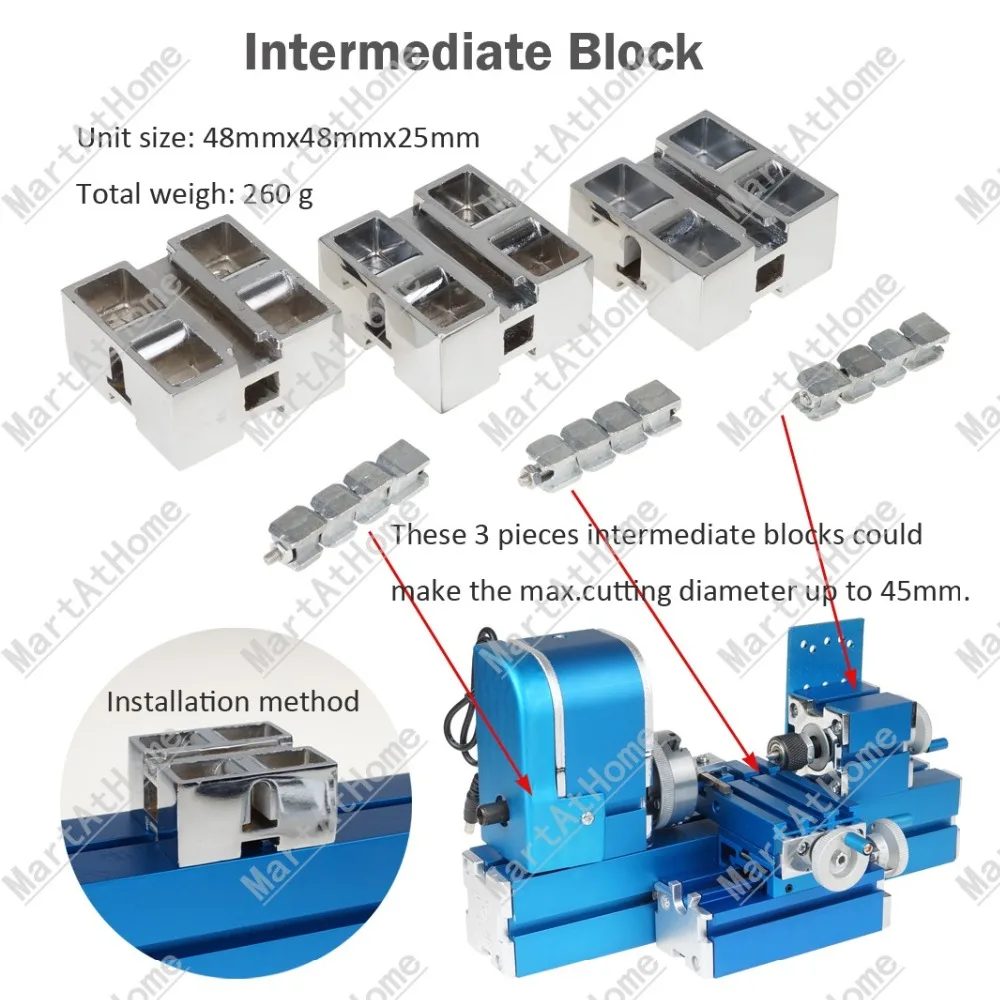

  • Max.cutting diameter: 20mm (bigger diameter is possible up to 45mm with 3 units of intermediate blocks)

You could purchase the block here:

https://www.aliexpress.com/item/Mini-Woodworking-Lathe-Intermediate-Block-Increase-Max-cutting-Diameter-to-45mm-from-20mm/32952782107.html

sm798-figure2

  • Center distance: 110mm ( it can be up to 360mm using the extra-long machine base)

You could purchase it here:

https://www.aliexpress.com/item/Extra-long-Mini-Woodworking-Lathe-Base-Increase-Center-Distance-to-360mm-from-110mm/32954191418.html )



sm798-figure3

  • Maximum processing diameter of the claws 13mm, anti-claw 45mm
  • Three-jaw chuck holding diameter: positive claws 13mm, anti-claw 45mm
  • Handle scale: 0.1mm
  • Packing size 230mm * 200mm * 315mm
  • Weight 2.2KG
  • Four-jaw chuck (optional) Size: Diameter 48mm * High 40mm
  • Connection: M12 * 1 screw hole
  • Minimum clamping size: 1.5mm * 1.5mm
  • Maximum clamping size: 18mm * 18m



What material can this lathe process?

 Carbon steel, Aluminum, ABS Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals

sm798-4
sm798-2sm798-1sm798-4sm798-3sm798-5sm798-6sm798-7sm798-10sm798-11sm798-8sm798-9
